Physics

A Wikipedia entry defines physics, broadly, as "... the general analysis of nature, conducted in order to understand how the universe behaves." Infants seem to have some built-in understanding of the world - they won't crawl over what appears to be an edge, even when they are on a sheet of glass that would protect them from falling.

Other concepts of how things behave seem to develop over time. An understanding of object permanence - "the understanding that objects continue to exist even when they cannot be seen, heard, or touched", only develops a bit before the age of 2.

As a child, I was fascinated by the following two objects (which I still have):

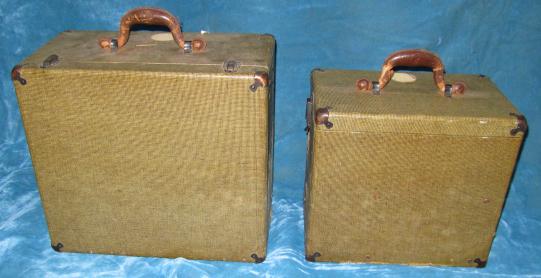

A 16mm projector and its speaker

The handle gives you some idea of the size, but to be more precise, the box on the left is 47 cm wide (18.5 inches). What surprised me was that the much larger box on the left weighs only 12.7 kg (about 28 pounds), while the smaller box on the right weighs 21.5 kg (about 47 pounds), almost 70 percent more. The difference is large enough to be easily felt just by picking them up. It seemed odd to me that the smaller box weighed more than the larger box.

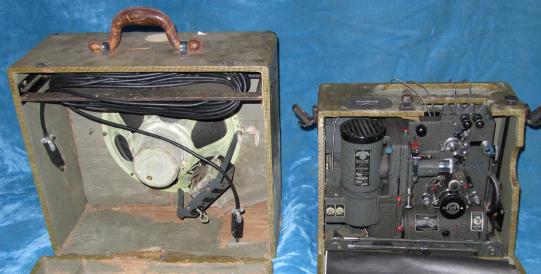

Here's what you see if you open the boxes to find out what's inside:

A 16mm projector and its speaker

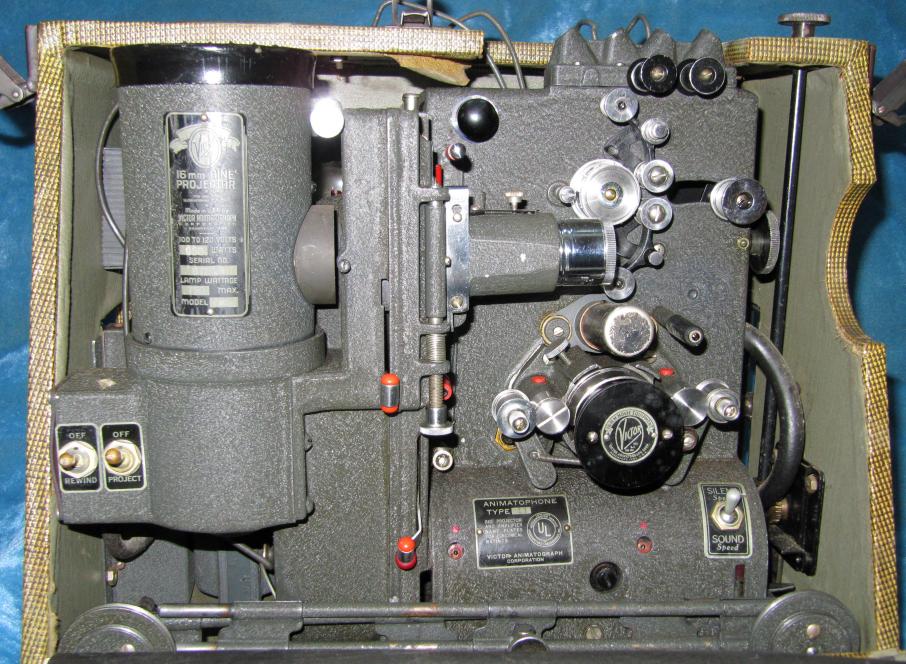

The right-hand box is a heavy 16-mm sound motion picture projector, complete with vacuum-tube amplifier circuitry. You can click on the photo if you want to see an enlarged picture of the projector (return here with your "Back" button).

The left-hand box is mostly empty, containing only a speaker. It would be even lighter if I took out the spooled electrical cord used to connect the speaker, usually placed at the front of a room, to the projector at the back.

I was being introduced to the concept of "density".

I was similarly surprised when, in some science class, I first heard Newton's first law of motion. The first part of it was not surprising, saying, "A body at rest remains at rest". Sure, something that is sitting there doesn't suddenly start to move for no reason.

But the second part, which says in essence, "a body in motion remains in motion", came as something of a surprise. Surely, if you rolled a ball on a flat surface, it would eventually come to a stop on its own. It took a bit of thought to realize that the ball stopped only because various forces resisting its motion were acting on it, such as air resistance and friction against the surface. That same ball thrown into interstellar space would continue traveling in a straight line forever.

I enjoyed my high school physics course, even though it was not very well taught (see my earlier blog entry on Mr. Lusch). I particularly liked the experimental laboratory sessions. But it was in my classical physics courses at MIT that I had a series of particularly imaginative and memorable lab experiences. Some of the most memorable experiences involved things that went wrong.

One of the most interesting experiments was entitled "Air Suspension Gyroscope". I think it became something of a classic. The main piece of equipment, the gyroscope itself, was a 5 cm diameter steel sphere (actually, I think the exact dimension was 2 inches). It had a small flat circle machined on one side, with a diameter of about a centimeter, and a small dot etched into it, off-center. It was magnetized to saturation along an axis perpendicular to the axis of the flat part.

The sphere was set into a base with a concave depression, somewhat less than hemispherical, with compressed air pumped up through a hole in the bottom. Thus, the heavy steel sphere was suspended on a cushion of air, so it could rotate freely. The support also had a magnetic coil in it, driven by 110 V, 60 Hz, from a wall socket. We caused the sphere to spin at 3,600 RPM (revolutions per minute), after which the magnetic field from the coil in the base kept it spinning indefinitely. Note 1

I've described this experiment to lead up to an event which happened one day in the lab. It didn't happen to me - it was described to me by somebody else who had been in a different lab session. A friend of his, walking by in the hall, had seen him in the lab working on this experiment. Knowing nothing about what was going on, he nevertheless walked into the room to strike up a conversation. He glanced down at the shiny steel 2-inch ball on the table in front of him.

The strobe light used in the experiment was still on, illuminating the sphere in a bright light. The strobe light was doing what strobe lights do: it was freezing the motion. Thus although the sphere was spinning at 3,600 RPM, it appeared stationary - individual minute scratches on its surface could be seen. Note 2

So the wiseguy who had come in from the hall looked at the sphere, said, "What's this?", and before anyone could stop him, he picked it up! He now was holding in his hand a 2 inch steel sphere which was spinning at 3,600 RPM. Needless to say, it didn't stay in his hand for long. It shot out and started bouncing around the room, careening off walls and chair and table legs, as everybody jumped in the air to avoid being struck.

Eventually, due to these collisions and to friction (remember Newton's law), it came to a stop. It was rather badly damaged, covered with dents, because some of the collisions it had suffered had been at a rather high speed. The sphere had cost MIT a couple of hundred dollars, in the dollars of the early 60s. I never found out whether the student got charged for the damage.

Compressed air suspension was frequently used in our experiments, whenever we wanted to come as close as possible to eliminating friction (of course, it can never be eliminated completely). We did a lot of experiments illustrating the conservation of momentum, using metal disc shaped "pucks" which were suspended on a layer of compressed air. This was done by bringing air down into the puck via a tube that came down from the ceiling. The air exited through a hole in the center of the puck, radially, in all directions. On a flat surface, given a push, the pucks would glide smoothly along with very little loss of velocity.

We needed to be able to determine the direction and speed that the pucks were traveling. This was done by covering the table with a special paper called "Teledeltos paper" (here's an article about some of its uses by the late, great Bob Pease). The paper is impregnated with carbon in order to make it electrically conductive, and our version was additionally coated with a very thin layer of wax.

In the center of each puck, actually in the center of the hole the compressed air came out of, was a pointed metal electrode floating barely above the surface of the paper. A motor driven apparatus produced an electrical spark 30 times per second, capable of melting a small hole in the wax coating on the paper. Thus if you gave a puck a push, and turned on the sparker as it left your hands, the result would be a line of dots on the paper. The line showed you the path the puck had taken, and the spacing between the dots, known to have occurred a 30th of a second apart, gave you its velocity.

You could thus slide two of the pucks towards each other, and measure the direction and velocity of each puck both before and after their collision. Such collisions can then be shown to preserve the overall "momentum" of the two pucks taken together. "Conservation of Momentum" is one of the important principals of classical physics, along with "Conservation of Energy".

A classmate, Mike Bertin, described sliding the pucks towards each other for a collision in the center of the table. The idea was to count off "1-2-3", releasing the pucks on 3, on their way to the desired collision. On 3, Mike's lab partner was to turn on the electricity to the spark electrodes.

Unfortunately, two mistakes were made. The first was that Mike was holding the pucks not by their bases, which he should have done, but rather by the upper part of their electrodes, sticking out on the top. The second mistake was his partner's - he switched on the electricity very slightly before the count of 3, while Mike still had his hands on the electrodes. In any event, Mike's count, which should have gone "1-2-3", was more like "1-2-AARGH!!!", as he received a nasty (but not dangerous) electrical shock.

You may have noticed that both experiments I've described so far involved the use of compressed air. This air was supplied by a pump in the corner of the lab, which pressurized a large tank. The air coming out of this tank went through a reducing valve, which could be adjusted to set the desired pressure delivered to the lab tables. From that valve, tubes snaked all over the room so that each lab table had its own compressed air supply.

The next laboratory experience I'll describe, unlike the two above, actually did happen to me personally. Again, compressed air was in use for the experiment. In this case, the air at each table exited through a long plastic tube, probably only about 3/8 of an inch in diameter. At the end of the tube, the stream of air drove a tiny propeller, the sole purpose of the air being to spin that propeller. Note 3

We were required to hand in our laboratory reports at the end of the lab session. We did not go off to write them up to be handed in later. This was to prevent the students from putting a great deal of effort into creating a beautiful write-up, as opposed to fundamentally understanding the material on the spot. These were the days before computers, so in fact we turned in hand-written reports. Note 4

Thus at the end of that day's experimentation, we were all hunched over our lab tables, busily writing away in order to complete our reports before the end of the session, when they had to be handed in. In the back of my mind, I could hear the graduate student lab assistant mumbling to himself as he followed a checklist for the lab's shutdown procedure. He said something about shutting off the air pressure to the room, and I glanced up to see him reaching behind the compressor, fumbling for some valve. Apparently, he grabbed the wrong valve, and started turning the reducing valve that controlled the air pressure distributed to the room.

I became aware that something was going wrong when I heard all of the little propellers on the end of their plastic tubes starting to spin at a higher rate. They began to sing loudly, and the hissing of the air became audibly more insistent. The graduate student turning the valve seemed oblivious to this. I looked up to see what was going wrong, looking in the direction of my lab partner across the table. And I was horrified to see a spherical bulge suddenly appear in the rubber air hose coming down not far from his head. Before I could say anything, the bulge went from the size of a lemon, to an orange, to a cantaloupe, and to a watermelon, at which point the hose burst with a loud bang.

I had never heard a noise like that, and never have since. In fact, I became mostly deaf immediately afterward, so loud was the report. I was terrified to think that I might have permanently lost my hearing, but in fact, it gradually returned to normal over the next few minutes.

I do remember all the physics I learned in those laboratory sessions, but it's interesting that what stands out the most in my mind are the times when something went wrong. Those were the most memorable sessions of all.
