We can use the F_{N+1} Fibonacci codewords
that are exactly N cells long as a numerical code; that is, we
can use them to represent integers. Individual codewords in the
Fibonacci code can be assigned numerical values, assigning each
codeword of length exactly N cells a unique value between zero
and F_{N+1}-1. This can be done by treating the codewords
as belonging to a weighted code, with each cell "weight"
being one of the Fibonacci numbers. The value of a particular
Fibonacci codeword is obtained by simply adding together the
numerical weights of any cell containing a narrow "1"
element, subject to the rules:

- The cell weights begin with F
_{0}for the left-most cell in the codeword, proceeding to F_{1}, F_{2}, F_{3}, and so on moving towards the right. - Each zero symbol ("0") uses up two cells.

It is important to note that the Fibonacci weights are associated
with each *cell* in the codeword, not with each *element*.

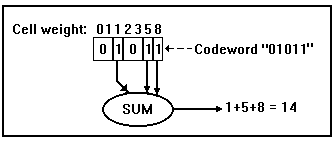

As a sample codeword, consider the code "01011",
of length 7 cells. Then:

One can prove that, using
this weighting method, an N-cell long code generates exactly the
integers from 0 through F_{N+1}-1; that is, F_{N+1}
distinct integers, with none missing, and no duplicates. This follows
from the method used to generate all
the codes of length N.

The figure above illustrates the simple conversion algorithm from a Fibonacci Code to its numerical value: simply line up the code with the Fibonacci cell weights, and add up the Fibonacci values of each cell containing a "1" (narrow element). Ignore all pairs of cells containing a "0" (wide element).

The algorithm for conversion from a numerical value to a Fibonacci
Code should also be clear now to anyone familiar with radix conversion
routines in general. Unlike a binary-to-decimal conversion, though,
this is a "mixed-radix" conversion, more like the conversion
from days-hours-minutes into total minutes elapsed (60 hours in a minute,
24 hours in a day).
With the Fibonacci code, it's best to begin from the Most Significant
cell of the code, on the right. Compare the value of the Fibonacci
number associated with that cell with the number to be converted.
If it's *less than or equal*, subtract that Fibonacci number
from the number to be converted, insert a "1" element
(narrow element), move one cell to the left, and iterate.

However, if the value of the Fibonacci number associated with that cell
is *greater than* the number to be converted, insert a "0"
element (wide element), move *two* cells to the left, and
iterate. Note: it is very important to move *two* cells to
the left here, to leave room for the wide "0" element.
The cell one position to the left *cannot* be used for a
"1" element, *even if its Fibonacci number can be
subtracted from the residue being converted at that point*,
because that cell is *also* occupied by the wide "0"
element, so it must be skipped over.

Then just iterate, moving to the left, until you arrive at the left-most cell, and the conversion is complete.

The steps in the conversion of the integer value 14 to a 7-cell Fibonacci
code are shown below. The initial "Residue" is set to
14, the number to convert. The conversion starts with
"F_{6}" because we have selected a 7-cell long
code. If the residue is not zero at the end of the process,
the code length selected was not long enough to hold the number.
Following the above algorithm:

Weights | Residue | Test | Action | Code |
---|---|---|---|---|

F_{6}=8 | 14 | F_{6}<=14? |
Yes, subtract F_{6}, prepend "1" |
1 |

F_{5}=5 | 6 | F_{5}<=6? |
Yes, subtract F_{5}, prepend "1" |
11 |

F_{4}=3 | 1 | F_{4}<=1? |
No, prepend "0" | 011 |

F_{3}=2 | 1 | Skip | Skip due to "0" in last step | 011 |

F_{2}=1 | 1 | F_{2}<=1? |
Yes, subtract F_{2}, prepend "1" |
1011 |

F_{1}=1 | 0 | F_{1}<=0? |
No, prepend "0" | 01011 |

F_{0}=0 | 0 | Skip | Skip due to "0" in last step | 01011 |

Note that in most "weighted" numerical codes, the code representing a given value is the same, except for leading zeros, regardless of the number of places in the code. For example, in decimal notation, the two-digit integer "34" becomes "034" when written with three digits, "0034" when written with four digits, and so on. In each case, the final two digits are the same.

We have chosen to write the Fibonacci
code "backwards", in the sense that the Least Significant
Element is on the left, so in the Fibonacci code, larger codes of
the same value add *trailing* zeros. The Fibonacci code has
the curious property that the same value is represented by one
code when the overall length of the code in cells
is even, and a different code when
the overall length is odd. Thus, the integer "2" is
represented in odd-cell-length codes by the elements
"111" (or "1110"
or "11100" or "111000", and so on), but in
even-cell-length codes, it's represented by "101" (or
"1010" or "10100" or "101000", etc.).
Note that in the codes just above, the *elements* of the
code are given, without showing that the "0" element is
twice as wide in *cells*.

Similarly, suppose we were to convert the number that was converted
just above, 14, into an *8-cell* code instead of a *7-cell* code.
The result then would have been 01001 instead of 01011. These two codes
have the same number of *elements*, but the former has one more
*cell* than the latter, because it has one more zero than before.
The conversion is left as an exercise for the reader (but
remember to start with F_{7} = 13).
